6300 Series Ball Bearings

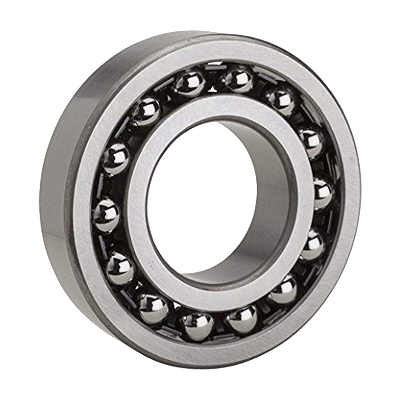

WM1® & WM3® 6300 Series Ball Bearings

Bowman’s WM1® and WM3® 6300 Series ball bearings offer high-quality performance in 52100 chrome steel, with stainless steel options available on request. As an experienced 6300 series ball bearings manufacturer, Bowman provides reliable bearing solutions for a wide range of industrial applications.

The WM1 6300 series bearing meets ABEC1 standards, while the WM3 6300 series bearing provides higher precision with an ABEC3 rating. These medium single row deep groove bearings are available with various seal configurations and can be customised to meet specific application requirements.

Designed for durability and efficient operation, the 6300 Series is suited to applications requiring greater load capacity than lighter bearing series. Bowman provides a reliable solution for customers seeking a heavy duty ball bearing supplier, including applications requiring a 6300 series bearing UK solution.

While the standard range uses 52100 chrome steel, 6300 series stainless bearings are also available on request, providing additional material options for demanding operating environments.

Connect with Experts

Bearing Number	Nominal Dimensions			Basic load ratings		Limiting speeds
	d	D	B	Dynamic	Static	Grease	Oil
	(mm)			(N)		(RPM)
WM1 6300	10	35	11	8060	3400	20000	26000
WM1 6301	12	37	12	9750	4150	19000	24000
WM1 6302	15	42	13	11400	5400	17000	20000
WM1 6303	17	47	14	13500	6550	16000	19000
WM1 6304	20	52	15	15900	7800	13000	16000
WM1 6305	25	62	17	22500	11600	11000	14000
WM1 6306	30	72	19	28100	16000	9000	11000
WM1 6307	35	80	21	32767	19000	8500	10000
WM1 6308	40	90	23	32767	24000	7500	9000
WM1 6309	45	100	25	32767	31500	6700	8000
WM1 6310	50	110	27	32767	32767	6300	7500
WM1 6311	55	120	29	32767	32767	5600	6700
WM1 6312	60	130	31	32767	32767	5000	6000
WM1 6313	65	140	33	32767	32767	4800	5600
WM1 6314	70	150	35	32767	32767	4500	5300
WM1 6315	75	160	37	32767	32767	4300	5000

Frequently Asked Questions

If the answer to your question is not listed below, please feel free to give us a call directly on +44 (0)1235 462500 or email us at sales@bowman.co.uk.

What is a 6300 series ball bearing?

A 6300 series ball bearing is a medium single row deep groove bearing designed for applications requiring greater load capacity than lighter bearing series. Bowman’s range is manufactured in 52100 chrome steel, with stainless steel options available on request.

What loads can 6300 series bearings handle?

6300 Series bearings are designed for applications requiring higher load capacity, but the exact load rating depends on the specific bearing size, operating speed, temperature, and application conditions. Our engineers can help select the appropriate bearing based on your requirements.

What sizes of 6300 series bearings are available?

Bowman offers a range of standard 6300 Series sizes in different precision grades and configurations. Availability depends on the specific bearing designation, seal or shield configuration, and material required. Contact our team to identify the appropriate 6300 series bearing UK option.

Can 6300 series bearings be sealed or shielded?

Yes. Bowman can supply 6300 Series bearings with various seal and shield configurations. These options help protect the bearing from contaminants and retain lubrication, supporting reliable performance in demanding applications.

How do I request a quote for 6300 series bearings?

Provide the required bearing designation or dimensions, quantity, precision grade, seal or shield configuration, material preference, and application details. Our team can recommend the appropriate bearing and provide a quotation as a heavy duty ball bearing supplier.
