6200 Series Ball Bearings

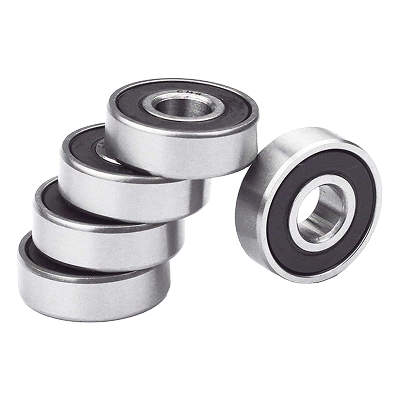

WM1® & WM3® 6200 Series Ball Bearings

Bowman’s WM1® and WM3® 6200 Series ball bearings offer high-quality performance in 52100 chrome steel, with stainless steel options available on request. As an experienced 6200 series ball bearings manufacturer, Bowman provides reliable bearing solutions for a wide range of industrial applications.

The WM1 6200 series bearing meets ABEC1 standards, while the WM3 6200 series bearing provides higher precision with an ABEC3 rating. These light single row deep groove bearings are available with various seal configurations and can be customised to meet specific application requirements.

Designed for durability and efficient operation, the 6200 Series is suitable for general-purpose applications requiring dependable performance. Bowman provides a flexible solution for customers seeking a general purpose ball bearing supplier, including applications requiring a 6200 series bearing UK solution.

While the standard range uses 52100 chrome steel, 6200 series stainless bearings are also available on request, providing additional material options for demanding operating environments.

Connect with Experts

Bearing Number	Nominal Dimensions			Basic load ratings		Limiting speeds
	d	D	B	Dynamic	Static	Grease	Oil
	(mm)			(N)		(RPM)
WM1 6200	10	30	9	5070	2360	24000	30000
WM1 6201	12	32	10	6890	3100	22000	28000
WM1 6202	15	35	11	7800	3750	19000	24000
WM1 6203	17	40	12	9560	4750	17000	20000
WM1 6204	20	47	14	12700	6550	15000	18000
WM1 6205	25	52	15	14000	7800	12000	15000
WM1 6206	30	62	16	19500	11200	10000	13000
WM1 6207	35	72	17	25500	15300	9000	11000
WM1 6208	40	80	18	30700	19000	8500	10000
WM1 6209	45	85	19	32767	21600	7500	9000
WM1 6210	50	90	20	32767	23200	7000	8500
WM1 6211	55	100	21	32767	29000	6300	7500
WM1 6212	60	110	22	32767	32500	6000	7000
WM1 6213	65	120	23	32767	32767	5300	6300
WM1 6214	70	125	24	32767	32767	5000	6000
WM1 6215	75	130	25	32767	32767	4800	5600
WM1 6216	80	140	26	32767	32767	4500	5300
WM1 6217	85	150	28	32767	32767	4300	5000
WM1 6218	90	160	30	32767	32767	3800	4500
WM1 6219	95	170	32	10800	32767	3600	4300
WM1 6220	100	180	34	32767	32767	3400	4000

Frequently Asked Questions

If the answer to your question is not listed below, please feel free to give us a call directly on +44 (0)1235 462500 or email us at sales@bowman.co.uk.

What is a 6200 series ball bearing?

A 6200 series ball bearing is a light single row deep groove bearing designed for general-purpose applications requiring reliable radial and axial load performance. Bowman’s range is available in 52100 chrome steel, with stainless steel options available on request.

What is the difference between 6000, 6200 and 6300 series?

The three series differ primarily in their dimensions and load capacities. The 6000 Series is an extra-light option, the 6200 Series provides a light construction with greater load capacity, while the 6300 Series is generally heavier and designed for higher loads. The appropriate series depends on the available space and application requirements.

What sizes of 6200 series bearings are available?

Bowman offers a range of standard 6200 Series sizes. Specific availability depends on the required bearing designation, precision grade, seal configuration, and material. Our team can help identify the appropriate 6200 series bearing UK option for your application.

Can 6200 series bearings be sealed or shielded?

Yes. 6200 Series bearings can be supplied with different seal or shield configurations depending on the application. These options can help protect the bearing from contaminants and retain lubrication, supporting reliable operation.

How do I request a quote for 6200 series bearings?

Provide the required bearing size or designation, quantity, precision grade, seal or shield configuration, material preference, and application details. Bowman can then recommend the appropriate bearing and provide a quotation as a general purpose ball bearing supplier.
