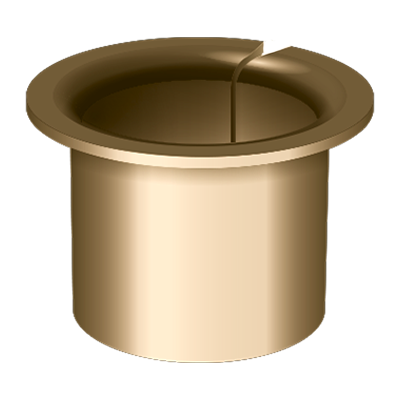

About WMUB Flanged Bearings
WMUB flanged bearings combine the proven design of the WMU wrapped bearing with a bronze backing for enhanced load capacity and structural integrity. The PTFE lining provides low-friction, wear-resistant performance, making these POM composite flanged bushing solutions suitable for dry-running applications where reliable operation and reduced maintenance are important.
Available in standard metric and inch sizes, WMUB bearings can also be manufactured in customized dimensions through our in-house machining capabilities. As an industrial WMUB supplier for the US and North American markets, we can support application-specific requirements and help customers source the appropriate Bowman WMUB bearing solution.
Matching Bearings
| Material | Unit Measurement | Part Number | Inner Diameter | Outer Diameter | Length | Tolerance Range | Action Button |
|---|---|---|---|---|---|---|---|
| WMUB® Bearings | Metric | WMUBF 05 07 05 - 10 X 1 | 5 | 7 | 5 | ||
| WMUB® Bearings | Metric | WMUBF 06 08 04 - 12 X 1 | 6 | 8 | 4 | ||
| WMUB® Bearings | Metric | WMUBF 06 08 07 - 12 X 1 | 6 | 8 | 7 | ||
| WMUB® Bearings | Metric | WMUBF 06 08 08 - 12 X 1 | 6 | 8 | 8 | ||
| WMUB® Bearings | Metric | WMUBF 08 10 05.5 - 15 X 1 | 8 | 10 | 5.5 | ||
| WMUB® Bearings | Metric | WMUBF 08 10 07.5 - 15 X 1 | 8 | 10 | 7.5 | ||
| WMUB® Bearings | Metric | WMUBF 08 10 09.5 - 15 X 1 | 8 | 10 | 9.5 | ||
| WMUB® Bearings | Metric | WMUBF 10 12 07 - 18 X 1 | 10 | 12 | 7 | ||
| WMUB® Bearings | Metric | WMUBF 10 12 09 - 18 X 1 | 10 | 12 | 9 | ||
| WMUB® Bearings | Metric | WMUBF 10 12 12 - 18 X 1 | 10 | 12 | 12 | ||
| WMUB® Bearings | Metric | WMUBF 10 12 17 - 18 X 1 | 10 | 12 | 17 | ||
| WMUB® Bearings | Metric | WMUBF 12 14 07 - 20 X 1 | 12 | 14 | 7 | ||
| WMUB® Bearings | Metric | WMUBF 12 14 09 - 20 X 1 | 12 | 14 | 9 | ||
| WMUB® Bearings | Metric | WMUBF 12 14 12 - 20 X 1 | 12 | 14 | 12 | ||
| WMUB® Bearings | Metric | WMUBF 12 14 17 - 20 X 1 | 12 | 14 | 17 | ||
| WMUB® Bearings | Metric | WMUBF 14 16 12 - 22 X 1 | 14 | 16 | 12 | ||
| WMUB® Bearings | Metric | WMUBF 14 16 17 - 22 X 1 | 14 | 16 | 17 | ||
| WMUB® Bearings | Metric | WMUBF 15 17 09 - 23 X 1 | 15 | 17 | 9 | ||
| WMUB® Bearings | Metric | WMUBF 15 17 12 - 23 X 1 | 15 | 17 | 12 | ||
| WMUB® Bearings | Metric | WMUBF 15 17 17 - 23 X 1 | 15 | 17 | 17 | ||
| WMUB® Bearings | Metric | WMUBF 16 18 12 - 24 X 1 | 16 | 18 | 12 | ||
| WMUB® Bearings | Metric | WMUBF 16 18 17 - 24 X 1 | 16 | 18 | 17 | ||
| WMUB® Bearings | Metric | WMUBF 18 20 12 - 26 X 1 | 18 | 20 | 12 | ||
| WMUB® Bearings | Metric | WMUBF 18 20 17 - 26 X 1 | 18 | 20 | 17 | ||
| WMUB® Bearings | Metric | WMUBF 18 20 22 - 26 X 1 | 18 | 20 | 22 | ||
| WMUB® Bearings | Metric | WMUBF 20 23 11.5 - 30 X 1.5 | 20 | 23 | 11.5 | ||
| WMUB® Bearings | Metric | WMUBF 20 23 16.5 - 30 X 1.5 | 20 | 23 | 16.5 | ||
| WMUB® Bearings | Metric | WMUBF 20 23 21.5 - 30 X 1.5 | 20 | 23 | 21.5 | ||
| WMUB® Bearings | Metric | WMUBF 25 28 11.5 - 35 X 1.5 | 25 | 28 | 11.5 | ||
| WMUB® Bearings | Metric | WMUBF 25 28 16.5 - 35 X 1.5 | 25 | 28 | 16.5 | ||
| WMUB® Bearings | Metric | WMUBF 25 28 21.5 - 35 X 1.5 | 25 | 28 | 21.5 | ||
| WMUB® Bearings | Metric | WMUBF 30 34 16 - 42 X 2 | 30 | 34 | 16 | ||
| WMUB® Bearings | Metric | WMUBF 30 34 26 - 42 X 2 | 30 | 34 | 26 | ||
| WMUB® Bearings | Metric | WMUBF 35 39 16 - 47 X 2 | 35 | 39 | 16 | ||
| WMUB® Bearings | Metric | WMUBF 35 39 26 - 47 X 2 | 35 | 39 | 26 | ||
| WMUB® Bearings | Metric | WMUBF 40 44 16 - 53 X 2 | 40 | 44 | 16 | ||
| WMUB® Bearings | Metric | WMUBF 40 44 26 - 53 X 2 | 40 | 44 | 26 | ||
| WMUB® Bearings | Metric | WMUBF 45 50 16 - 58 X 2.5 | 45 | 50 | 16 | ||
| WMUB® Bearings | Metric | WMUBF 45 50 26 - 58 X 2.5 | 45 | 50 | 26 | ||
| WMUB® Bearings | Metric | WMUBF 50 55 40 - 65 X 2.5 | 50 | 55 | 40 | ||
| WMUB® Bearings | Metric | WMUBF 60 65 40 - 80 X 2.5 | 60 | 65 | 40 |
Frequently Asked Questions
What is a WMUB flanged bearing?
A WMUB flanged bearing is a wrapped plain bearing with a bronze backing and PTFE lining, designed to provide reliable low-friction performance in dry-running applications. WMUB bearings are particularly useful where a flange is required to provide axial positioning or support.
When should I use a flanged bearing over a plain bearing?
A flanged bearing is useful when the bearing needs to provide both radial support and axial positioning within an assembly. WMUB flanged bearings can help simplify component design where space, alignment, or axial movement needs to be controlled.
What is POM composite lining?
POM (polyoxymethylene) is an engineering thermoplastic known for its low friction, wear resistance, and dimensional stability. A POM composite flanged bushing can provide reliable performance in applications where reduced friction and wear are important, particularly under dry-running conditions.
What sizes are available for WMUB bearings?
WMUB bearings are available in standard metric and inch sizes to suit a variety of industrial applications. Customized dimensions can also be produced through our in-house machining capabilities to meet specific customer requirements.
How do I request a quote for WMUB bearings?
Contact our team with your required dimensions, quantity, application details, and operating conditions. As an industrial WMUB supplier in the US and North American market, we can recommend a suitable Bowman WMUB solution and provide a quote based on your requirements.
