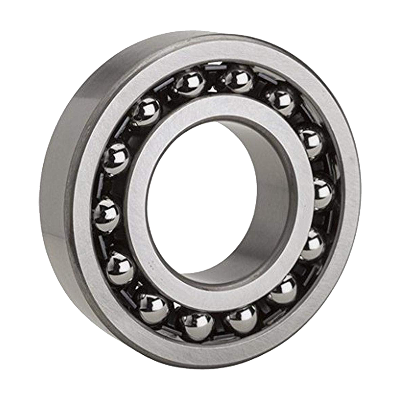

About 6300 Series Ball Bearings
Bowman’s WM1® and WM3® 6300 Series ball bearings are designed to provide reliable performance for a range of industrial applications. Manufactured from 52100 chrome steel, with stainless steel options available on request, these bearings offer durability and efficient operation.
WM1® bearings meet ABEC1 standards, while WM3® bearings provide higher precision with ABEC3 ratings. The range is available with various seal configurations and custom modifications to meet different application requirements, including deep groove medium bearing applications.
For customers looking for WM1/WM3 ball bearings in the USA, Bowman supplies 6300 Series ball bearings across North America. Contact Bowman to discuss your requirements and available configurations.
| Bearing Number | Nominal Dimensions | Basic load ratings | Limiting speeds | ||||
|---|---|---|---|---|---|---|---|
| d | D | B | Dynamic | Static | Grease | Oil | |
| (mm) | (N) | (RPM) | |||||
| WM1 6300 | 10 | 35 | 11 | 8060 | 3400 | 20000 | 26000 |
| WM1 6301 | 12 | 37 | 12 | 9750 | 4150 | 19000 | 24000 |
| WM1 6302 | 15 | 42 | 13 | 11400 | 5400 | 17000 | 20000 |
| WM1 6303 | 17 | 47 | 14 | 13500 | 6550 | 16000 | 19000 |
| WM1 6304 | 20 | 52 | 15 | 15900 | 7800 | 13000 | 16000 |
| WM1 6305 | 25 | 62 | 17 | 22500 | 11600 | 11000 | 14000 |
| WM1 6306 | 30 | 72 | 19 | 28100 | 16000 | 9000 | 11000 |
| WM1 6307 | 35 | 80 | 21 | 32767 | 19000 | 8500 | 10000 |
| WM1 6308 | 40 | 90 | 23 | 32767 | 24000 | 7500 | 9000 |
| WM1 6309 | 45 | 100 | 25 | 32767 | 31500 | 6700 | 8000 |
| WM1 6310 | 50 | 110 | 27 | 32767 | 32767 | 6300 | 7500 |
| WM1 6311 | 55 | 120 | 29 | 32767 | 32767 | 5600 | 6700 |
| WM1 6312 | 60 | 130 | 31 | 32767 | 32767 | 5000 | 6000 |
| WM1 6313 | 65 | 140 | 33 | 32767 | 32767 | 4800 | 5600 |
| WM1 6314 | 70 | 150 | 35 | 32767 | 32767 | 4500 | 5300 |
| WM1 6315 | 75 | 160 | 37 | 32767 | 32767 | 4300 | 5000 |
Frequently Asked Questions
What is a 6300 Series ball bearing?
A 6300 Series ball bearing is a deep groove medium bearing designed for reliable performance in a range of industrial applications. Bowman’s WM1® and WM3® 6300 Series ball bearings are manufactured from 52100 chrome steel, with stainless steel options available on request.
What loads can 6300 bearings handle?
The specific load capacity of a 6300 Series ball bearing depends on the bearing size, configuration, and operating conditions. Contact Bowman for application-specific load information and bearing selection.
How does 6300 differ from 6200?
The 6300 and 6200 Series are both deep groove ball bearing ranges, but they have different dimensions and load capabilities. The appropriate series depends on the required bearing size, load, and application.
What sizes are available?
Bowman offers WM1® and WM3® 6300 Series ball bearings in a range of sizes and configurations. Various seal configurations and custom modifications are also available. Contact Bowman for specific size availability.
How do I request a quote?
To request a quote for WM1/WM3 ball bearings in the USA or North America, provide the required bearing size, quantity, and application details. Bowman can help identify the appropriate 6300 Series ball bearing for your requirements.
