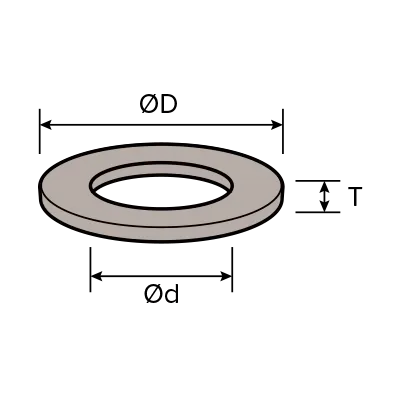

Details
| Inner Diameter | 20.7 |
| Outer Diameter | 38 |
| Thickness | 1.5 |
Material Specification
| Structure | Acetal copolymer |
|---|---|
| Static load (N/mm²) | 22 max |
| Sliding speed (m/s) | 2 max |
| Intermittent max temperature (°C) | 140 max |
| Operating temperature (°C) | 100 max |
| Thermal Conductivity (W/mk) | 0.31 |
| Hardness (rockwell) | M86 |
| Tensile strength (N/mm²) | 70 min |
| Elongation (%) | 30 |
| E-module (N/mm²) | 3000 |
Tolerances & Fittings (Metric)
| Min | Max | Tolerance | |
|---|---|---|---|
| Inside Diameter When Fitted | 20.5 | 20.9 | |
| Recommended Housing Size | 37.8 | 38.2 | |
| Thickness Tolerance | -0.15 | 0.15 |
Frequently Asked Questions
What sizes of TWP acetal washers are available?
TWP acetal thrust washers are available in a range of standard sizes, including metric acetal washer sizes, to suit different industrial applications. The available dimensions depend on the specific TWP bearing or washer specification.
What is the difference between TWP 30 and TWP 30-1?
TWP 30 and TWP 30-1 are different specifications within the TWP acetal washer range. The distinction relates to their respective design and dimensional specifications. Refer to the relevant product dimensions or contact our team to confirm which version is appropriate for your application.
How thick are TWP washers?
The thickness of TWP acetal washers varies by product specification and size. For accurate dimensional information, refer to the relevant TWP product specification or contact our team with your required dimensions.
How do I select the right TWP acetal washer size?
Select a TWP acetal thrust washer based on the required inner and outer diameters, washer thickness, available space, load, speed, and operating conditions. Our team can help identify the appropriate TWP bearings USA specification for your application.
Can Bowman make custom TWP washer sizes?
If a standard TWP size does not meet your requirements, contact our team to discuss your application and dimensional needs. As an industrial TWP acetal supplier in the US, we can advise on available options and requirements for Bowman TWP Acetal solutions.
