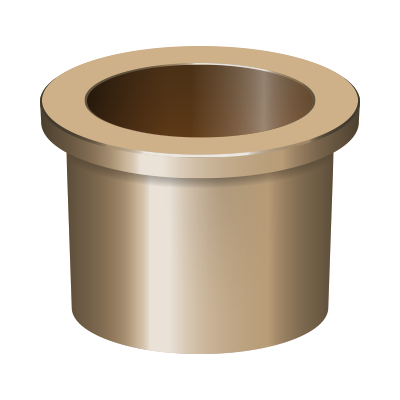

About Sintered Bronze/Iron Flanged Bearings
Our sintered flanged bearings combine reliable plain bearing performance with the added positioning benefits of a flanged design. Available in both bronze and iron, these bearings can be supplied in a range of metric tolerance specifications, including G7 s7, G8 s8, F7 s7, F8 s8, G7 r6, and E7 r7, along with a full range of imperial sizes.
For applications requiring self-lubricating performance, an oil impregnated flange bushing can provide consistent lubrication during operation. All dimensions and tolerances of our standard metric Sintered Bronze/Iron bearings conform to ISO 2795:1991. Our in-house machining capabilities also allow us to produce non-standard sizes to meet specific customer requirements.
As an industrial sintered bronze/iron supplier in the US, we support customers looking to buy Sintered Bronze/Iron bearings in North America, with Bowman sintered bronze/iron solutions available for a wide range of industrial applications.
Matching Bearings
| Material | Unit Measurement | Part Number | Inner Diameter | Outer Diameter | Length | Tolerance Range | Action Button |
|---|---|---|---|---|---|---|---|
| Sintered Bronze & Iron Bearings | Metric | AL 02 05 03 - 08 X 1.5 | 2 | 5 | 3 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 03 05 04 - 08 X 1.5 | 3 | 5 | 4 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 03 06 03 - 09 X 1.5 | 3 | 6 | 3 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 03 06 04 - 09 X 1.5 | 3 | 6 | 4 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 04 08 04 - 12 X 2 | 4 | 8 | 4 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 04 08 06 - 12 X 2 | 4 | 8 | 6 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 04 08 08 - 12 X 2 | 4 | 8 | 8 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 04 08 12 - 12 X 2 | 4 | 8 | 12 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 05 09 04 - 13 X 2 | 5 | 9 | 4 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 05 09 05 - 13 X 2 | 5 | 9 | 5 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 05 09 08 - 13 X 2 | 5 | 9 | 8 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 05 10 06 - 12 X 2 | 5 | 10 | 6 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 06 10 04 - 14 X 2 | 6 | 10 | 4 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 06 10 06 - 14 X 2 | 6 | 10 | 6 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 06 10 08 - 14 X 2 | 6 | 10 | 8 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 06 10 10 - 14 X 2 | 6 | 10 | 10 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 06 10 16 - 14 X 2 | 6 | 10 | 16 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 06 12 06 - 14 X 2 | 6 | 12 | 6 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 07 11 08 - 15 X 2 | 7 | 11 | 8 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 08 12 06 - 16 X 2 | 8 | 12 | 6 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 08 12 08 - 16 X 2 | 8 | 12 | 8 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 08 12 12 - 16 X 2 | 8 | 12 | 12 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 08 12 16 - 16 X 2 | 8 | 12 | 16 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 08 14 08 - 18 X 3 | 8 | 14 | 8 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 09 14 06 - 19 X 2.5 | 9 | 14 | 6 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 09 14 10 - 19 X 2.5 | 9 | 14 | 10 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 09 14 14 - 19 X 2.5 | 9 | 14 | 14 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 10 13 08 - 17 X 2.5 | 10 | 13 | 8 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 10 13 10 - 17 X 2.5 | 10 | 13 | 10 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 10 13 16 - 17 X 2.5 | 10 | 13 | 16 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 10 13 20 - 17 X 2.5 | 10 | 13 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 10 15 08 - 21 X 3 | 10 | 15 | 8 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 10 15 10 - 21 X 3 | 10 | 15 | 10 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 10 15 16 - 21 X 3 | 10 | 15 | 16 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 10 15 20 - 21 X 3 | 10 | 15 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 10 16 08 - 22 X 3 | 10 | 16 | 8 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 10 16 10 - 22 X 3 | 10 | 16 | 10 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 10 16 12 - 22 X 3 | 10 | 16 | 12 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 10 16 16 - 22 X 3 | 10 | 16 | 16 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 12 15 12 - 21 X 3 | 12 | 15 | 12 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 12 15 16 - 21 X 3 | 12 | 15 | 16 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 12 15 20 - 21 X 3 | 12 | 15 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 12 17 12 - 23 X 3 | 12 | 17 | 12 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 12 17 16 - 23 X 3 | 12 | 17 | 16 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 12 17 20 - 23 X 3 | 12 | 17 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 12 17 25 | 12 | 17 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 12 18 08 - 24 X 3 | 12 | 18 | 8 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 12 18 12 - 24 X 3 | 12 | 18 | 12 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 12 18 20 - 24 X 3 | 12 | 18 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 14 20 10 - 26 X 3 | 14 | 20 | 10 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 14 20 14 - 26 X 3 | 14 | 20 | 14 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 14 20 20 - 26 X 3 | 14 | 20 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 15 19 16 - 25 X 3 | 15 | 19 | 16 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 15 19 20 - 25 X 3 | 15 | 19 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 15 19 25 - 25 X 3 | 15 | 19 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 15 21 10 - 27 X 3 | 15 | 21 | 10 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 15 21 15 - 27 X 3 | 15 | 21 | 15 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 15 21 20 - 27 X 3 | 15 | 21 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 15 21 25 - 27 X 3 | 15 | 21 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 16 20 16 - 27 X 3 | 16 | 20 | 16 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 16 20 20 - 27 X 3 | 16 | 20 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 16 20 25 - 27 X 3 | 16 | 20 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 16 22 12 - 28 X 3 | 16 | 22 | 12 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 16 22 16 - 28 X 3 | 16 | 22 | 16 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 16 22 20 - 28 X 3 | 16 | 22 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 16 22 25 - 28 X 3 | 16 | 22 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 18 24 12 - 30 X 3 | 18 | 24 | 12 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 18 24 18 - 30 X 3 | 18 | 24 | 18 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 18 24 22 - 30 X 3 | 18 | 24 | 22 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 18 24 30 - 30 X 3 | 18 | 24 | 30 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 20 24 16 - 30 X 3 | 20 | 24 | 16 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 20 24 20 - 30 X 3 | 20 | 24 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 20 24 25 - 30 X 3 | 20 | 24 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 20 26 15 - 32 X 3 | 20 | 26 | 15 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 20 26 20 - 32 X 3 | 20 | 26 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 20 26 25 - 32 X 3 | 20 | 26 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 20 26 30 - 32 X 3 | 20 | 26 | 30 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 22 28 15 - 34 X 3 | 22 | 28 | 15 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 22 28 20 - 34 X 3 | 22 | 28 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 22 28 25 - 34 X 3 | 22 | 28 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 22 28 30 - 34 X 3 | 22 | 28 | 30 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 25 30 20 - 39 X 3.5 | 25 | 30 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 25 30 25 - 39 X 3.5 | 25 | 30 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 25 30 32 - 39 X 3.5 | 25 | 30 | 32 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 25 32 20 - 39 X 3.5 | 25 | 32 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 25 32 25 - 39 X 3.5 | 25 | 32 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 25 32 30 - 39 X 3.5 | 25 | 32 | 30 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 28 36 20 - 44 X 4 | 28 | 36 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 28 36 25 - 44 X 4 | 28 | 36 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 28 36 30 - 44 X 4 | 28 | 36 | 30 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 30 38 20 - 46 X 4 | 30 | 38 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 30 38 25 - 46 X 4 | 30 | 38 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 30 38 30 - 46 X 4 | 30 | 38 | 30 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 32 38 20 - 46 X 4 | 32 | 38 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 32 38 25 - 46 X 4 | 32 | 38 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 32 38 32 - 46 X 4 | 32 | 38 | 32 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 32 40 20 - 48 X 4 | 32 | 40 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 32 40 25 - 48 X 4 | 32 | 40 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 32 40 30 - 48 X 4 | 32 | 40 | 30 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 35 45 20 - 55 X 5 | 35 | 45 | 20 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 35 45 25 - 55 X 5 | 35 | 45 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 35 45 35 - 55 X 5 | 35 | 45 | 35 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 35 45 40 - 55 X 5 | 35 | 45 | 40 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 38 48 25 - 58 X 5 | 38 | 48 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 38 48 35 - 58 X 5 | 38 | 48 | 35 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 40 46 25 - 56 X 5 | 40 | 46 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 40 46 32 - 56 X 5 | 40 | 46 | 32 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 40 46 40 - 56 X 5 | 40 | 46 | 40 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 40 50 25 - 60 X 5 | 40 | 50 | 25 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 40 50 30 - 60 X 5 | 40 | 50 | 30 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 40 50 40 - 60 X 5 | 40 | 50 | 40 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 40 50 50 - 60 X 5 | 40 | 50 | 50 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 42 52 40 - 62 X 5 | 42 | 52 | 40 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 42 52 50 - 62 X 5 | 42 | 52 | 50 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 45 55 35 - 65 X 5 | 45 | 55 | 35 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 45 55 45 - 65 X 5 | 45 | 55 | 45 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 45 55 55 - 65 X 5 | 45 | 55 | 55 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 50 60 32 - 70 X 5 | 50 | 60 | 32 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 50 60 35 - 70 X 5 | 50 | 60 | 35 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 50 60 40 - 70 X 5 | 50 | 60 | 40 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 50 60 50 - 70 X 5 | 50 | 60 | 50 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 60 72 50 - 84 X 6 | 60 | 72 | 50 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AT 60 72 60 - 84 X 6 | 60 | 72 | 60 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 60 75 60 - 85 X 8 | 60 | 75 | 60 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 70 85 60 - 95 X 8 | 70 | 85 | 60 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 80 95 70 - 105 X 8 | 80 | 95 | 70 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 90 110 50 - 120 X 8 | 90 | 110 | 50 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AL 100 120 80 - 130 X 8 | 100 | 120 | 80 | ISO 2795 | |
| Sintered Bronze & Iron Bearings | Metric | AE 04 08 06 - 10 X 2 | 4 | 8 | 6 | DIN 1850 | |
| Sintered Bronze & Iron Bearings | Metric | AE 06 10 10 - 12 X 2 | 6 | 10 | 10 | DIN 1851 | |
| Sintered Bronze & Iron Bearings | Metric | AE 08 12 15 - 14 X 2 | 8 | 12 | 15 | DIN 1852 | |
| Sintered Bronze & Iron Bearings | Metric | AE 10 16 20 - 20 X 2 | 10 | 16 | 20 | DIN 1853 | |
| Sintered Bronze & Iron Bearings | Metric | AE 12 16 20 - 18 X 2 | 12 | 16 | 20 | DIN 1854 | |
| Sintered Bronze & Iron Bearings | Metric | AE 14 20 25 - 23 X 3 | 14 | 20 | 25 | DIN 1855 | |
| Sintered Bronze & Iron Bearings | Metric | AE 16 22 20 - 28 X 3 | 16 | 22 | 20 | DIN 1856 | |
| Sintered Bronze & Iron Bearings | Metric | AE 18 24 18 - 32 X 3 | 18 | 24 | 18 | DIN 1857 | |
| Sintered Bronze & Iron Bearings | Metric | AE 18 24 30 - 32 X 3 | 18 | 24 | 30 | DIN 1850 | |
| Sintered Bronze & Iron Bearings | Metric | AE 20 26 30 - 32 X 3 | 20 | 26 | 30 | DIN 1850 | |
| Sintered Bronze & Iron Bearings | Metric | AT 04 08 04 - 10 X 1.5 | 4 | 8 | 4 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 04 08 06 - 10 X 1.5 | 4 | 8 | 6 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 10 14 12 - 18 X 2 | 10 | 14 | 12 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 10 16 08 - 20 X 3 | 10 | 16 | 8 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 10 16 10 - 20 X 3 | 10 | 16 | 10 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 12 18 10 - 22 X 3 | 12 | 18 | 10 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 12 18 12 - 22 X 3 | 12 | 18 | 12 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 15 22 12 - 28 X 3 | 15 | 22 | 12 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 15 22 16 - 28 X 3 | 15 | 22 | 16 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 16 22 12 - 28 X 4 | 16 | 22 | 12 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 16 22 16 - 28 X 4 | 16 | 22 | 16 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 18 25 12 - 32 X 4 | 18 | 25 | 12 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 18 25 16 - 32 X 4 | 18 | 25 | 16 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 20 28 16 - 35 X 4 | 20 | 28 | 16 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 20 28 20 - 35 X 4 | 20 | 28 | 20 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 25 32 20 - 45 X 5 | 25 | 32 | 20 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 25 32 30 - 45 X 5 | 25 | 32 | 30 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 25 35 16 - 45 X 5 | 25 | 35 | 16 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 25 35 25 - 45 X 5 | 25 | 35 | 25 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 30 40 20 - 50 X 5 | 30 | 40 | 20 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 30 40 30 - 50 X 5 | 30 | 40 | 30 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 40 50 25 - 60 X 6 | 40 | 50 | 25 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 40 50 40 - 60 X 6 | 40 | 50 | 40 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 45 55 30 - 65 X 6 | 45 | 55 | 30 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 45 55 45 - 65 X 6 | 45 | 55 | 45 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 50 60 30 - 70 X 6 | 50 | 60 | 30 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AT 50 60 50 - 70 X 6 | 50 | 60 | 50 | Scandinavian | |
| Sintered Bronze & Iron Bearings | Metric | AG 03 06 04 - 09 x 1.5 | 3 | 6 | 4 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 03 06 06 - 09 x 1.5 | 3 | 6 | 6 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 03 06 10 - 09 x 1.5 | 3 | 6 | 10 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 04 08 04 - 12 x 2 | 4 | 8 | 4 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 04 08 06 - 12 x 2 | 4 | 8 | 6 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 04 08 08 - 12 x 2 | 4 | 8 | 8 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 04 08 12 - 12 x 2 | 4 | 8 | 12 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 06 10 06 - 14 x 2 | 6 | 10 | 6 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 06 10 10 - 14 x 2 | 6 | 10 | 10 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 06 10 16 - 14 x 2 | 6 | 10 | 16 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 08 12 08 - 16 x 2 | 8 | 12 | 8 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 08 12 12 - 16 x 2 | 8 | 12 | 12 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 08 12 16 - 16 x 2 | 8 | 12 | 16 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 09 14 06 - 19 x 2.5 | 9 | 14 | 6 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 09 14 10 - 19 x 2.5 | 9 | 14 | 10 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 09 14 14 - 19 x 2.5 | 9 | 14 | 14 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 10 13 10 - 16 x 2.5 | 10 | 13 | 10 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 10 13 16 - 16 x 1.5 | 10 | 13 | 16 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 10 13 20 - 16 x 1.5 | 10 | 13 | 20 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 10 15 10 - 20 x 2.5 | 10 | 15 | 10 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 10 15 16 - 20 x 2.5 | 10 | 15 | 16 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 10 15 20 - 20 x 2.5 | 10 | 15 | 20 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 10 16 08 - 22 x 3 | 10 | 16 | 8 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 10 16 10 - 22 x 3 | 10 | 16 | 10 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 10 16 16 - 22 x 3 | 10 | 16 | 16 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 12 15 12 - 18 x 1.5 | 12 | 15 | 12 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 12 15 16 - 18 x 1.5 | 12 | 15 | 16 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 12 15 20 - 18 x 1.5 | 12 | 15 | 20 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 12 17 12 - 22 x 2.5 | 12 | 17 | 12 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 12 17 16 - 22 x 2.5 | 12 | 17 | 16 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 12 17 20 - 22 x 2.5 | 12 | 17 | 20 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 12 17 25 - 22 x 2.5 | 12 | 17 | 25 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 12 18 08 - 24 x 3 | 12 | 18 | 8 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 12 18 12 - 24 x 3 | 12 | 18 | 12 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 12 18 20 - 24 x 3 | 12 | 18 | 20 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 14 18 14 - 22 x 2 | 14 | 18 | 14 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 14 18 18 - 22 x 2 | 14 | 18 | 18 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 14 18 22 - 22 x 2 | 14 | 18 | 22 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 14 20 14 - 26 x 3 | 14 | 20 | 14 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 14 20 16 - 26 x 3 | 14 | 20 | 16 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 14 20 18 - 26 x 3 | 14 | 20 | 18 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 14 20 22 - 26 x 3 | 14 | 20 | 22 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 14 20 28 - 26 x 3 | 14 | 20 | 28 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 15 19 16 - 23 x 2 | 15 | 19 | 16 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 15 19 20 - 23 x 2 | 15 | 19 | 20 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 15 19 25 - 23 x 2 | 15 | 19 | 25 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 15 21 16 - 27 x 3 | 15 | 21 | 16 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 15 21 20 - 27 x 3 | 15 | 21 | 20 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 15 21 25 - 27 x 3 | 15 | 21 | 25 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 15 21 32 - 27 x 3 | 15 | 21 | 32 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 16 20 16 - 24 x 2 | 16 | 20 | 16 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 16 20 20 - 24 x 2 | 16 | 20 | 20 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 16 20 25 - 24 x 2 | 16 | 20 | 25 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 16 22 16 - 28 x 3 | 16 | 22 | 16 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 16 22 20 - 28 x 3 | 16 | 22 | 20 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 16 22 25 - 28 x 3 | 16 | 22 | 25 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 16 22 32 - 28 x 3 | 16 | 22 | 32 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 18 22 18 - 26 x 2 | 18 | 22 | 18 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 18 22 22 - 26 x 2 | 18 | 22 | 22 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 18 22 28 - 26 x 2 | 18 | 22 | 28 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 18 24 18 - 30 x 3 | 18 | 24 | 18 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 18 24 22 - 30 x 3 | 18 | 24 | 22 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 18 24 28 - 30 x 3 | 18 | 24 | 28 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 20 24 16 - 28 x 2 | 20 | 24 | 16 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 20 24 20 - 28 x 2 | 20 | 24 | 20 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 20 24 25 - 28 x 2 | 20 | 24 | 25 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 20 26 16 - 32 x 3 | 20 | 26 | 16 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 20 26 20 - 32 x 3 | 20 | 26 | 20 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 20 26 25 - 32 x 3 | 20 | 26 | 25 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 20 26 32 - 32 x 3 | 20 | 26 | 32 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 22 27 18 - 32 x 2.5 | 22 | 27 | 18 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 22 27 22 - 32 x 2.5 | 22 | 27 | 22 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 22 27 28 - 32 x 2.5 | 22 | 27 | 28 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 22 28 15 - 34 x 3 | 22 | 28 | 15 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 22 28 20 - 24 x 3 | 22 | 28 | 20 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 22 28 25 - 34 x 3 | 22 | 28 | 25 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 22 28 30 - 34 x 3 | 22 | 28 | 30 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 22 29 18 - 36 x 3.5 | 22 | 29 | 18 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 22 29 22 - 36 x 3.5 | 22 | 29 | 22 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 22 29 28 - 36 x 3.5 | 22 | 29 | 28 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 22 29 36 - 36 x 3.5 | 22 | 29 | 36 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 25 30 20 - 35 x 2.5 | 25 | 30 | 20 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 25 30 25 - 35 x 2.5 | 25 | 30 | 25 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 25 30 32 - 39 x 3.5 | 25 | 30 | 32 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 25 32 20 - 39 x 3.5 | 25 | 32 | 20 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 25 32 25 - 39 x 3.5 | 25 | 32 | 25 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 25 30 32 - 39 x 3.5 | 25 | 30 | 32 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 28 33 22 - 38 x 2.5 | 28 | 33 | 22 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 28 33 28 - 38 x 2.5 | 28 | 33 | 28 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 28 33 36 - 38 x 2.5 | 28 | 33 | 36 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 28 36 22 - 44 x 4 | 28 | 36 | 22 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 28 36 28 - 44 x 4 | 28 | 36 | 28 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 28 36 36 - 44 x 4 | 28 | 36 | 36 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 30 38 20 - 46 x 4 | 30 | 38 | 20 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 30 38 25 - 46 x 4 | 30 | 38 | 25 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 30 38 30 - 46 x 4 | 30 | 38 | 30 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 32 38 20 - 44 x 3 | 32 | 38 | 20 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 32 38 25 - 44 x 3 | 32 | 38 | 25 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 32 38 32 - 44 x 3 | 32 | 38 | 32 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 32 40 20 - 48 x 4 | 32 | 40 | 20 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 32 40 25 - 48 x 4 | 32 | 40 | 25 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 32 40 30 - 48 x 4 | 32 | 40 | 30 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 32 40 32 - 48 x 4 | 32 | 40 | 32 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 36 42 22 - 48 x 3 | 36 | 42 | 22 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 36 42 28 - 48 x 3 | 36 | 42 | 28 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 36 42 36 - 48 x 3 | 36 | 42 | 36 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 36 45 22 - 54 x 4.5 | 36 | 45 | 22 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 36 45 28 - 54 x 4.5 | 36 | 45 | 28 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 36 45 36 - 54 x 4.5 | 36 | 45 | 36 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 40 46 25 - 52 x 3 | 40 | 46 | 25 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 40 46 32 - 52 x 3 | 40 | 46 | 32 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 40 46 40 - 52 x 3 | 40 | 46 | 40 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 40 50 25 - 60 x 5 | 40 | 50 | 25 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 40 50 32 - 60 x 5 | 40 | 50 | 32 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 40 50 40 - 60 x 5 | 40 | 50 | 40 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 45 51 28 - 57 x 3 | 45 | 51 | 28 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 45 51 36 - 57 x 3 | 45 | 51 | 36 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 45 51 45 - 57 x 3 | 45 | 51 | 45 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 45 56 28 - 67 x 5.5 | 45 | 56 | 28 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 45 56 36 - 67 x 5.5 | 45 | 56 | 36 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 45 56 45 - 67 x 5.5 | 45 | 56 | 45 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 50 56 32 - 62 x 3 | 50 | 56 | 32 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 50 56 40 - 62 x 3 | 50 | 56 | 40 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 50 56 50 - 62 x 3 | 50 | 56 | 50 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 50 56 32 - 62 x 3 | 50 | 56 | 32 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 50 60 32 - 70 x 5 | 50 | 60 | 32 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 50 60 40 - 70 x 5 | 50 | 60 | 40 | French | |
| Sintered Bronze & Iron Bearings | Metric | AG 50 60 50 - 70 x 5 | 50 | 60 | 50 | French | |
| Sintered Bronze & Iron Bearings | Imperial | AJ 03 05 04 - 06 X 1 | 0.1875 | 0.3125 | 0.25 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 03 05 08 - 06 X 1 | 0.1875 | 0.3125 | 0.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 05 08 04 - 10 X 1 | 0.3125 | 0.5 | 0.25 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 05 08 06 - 10 X 1 | 0.3125 | 0.5 | 0.375 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 05 08 08 - 10 X 1 | 0.3125 | 0.5 | 0.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 05 08 12 - 10 X 1 | 0.3125 | 0.5 | 0.75 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 05 09 06 - 10.5 X 2 | 0.3125 | 0.5625 | 0.375 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 05 09 12 - 10.5 X 2 | 0.3125 | 0.5625 | 0.75 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 06 09 08 - 12 X 1 | 0.375 | 0.5625 | 0.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 06 10 06 - 12 X 2 | 0.375 | 0.625 | 0.375 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 06 10 08 - 12 X 2 | 0.375 | 0.625 | 0.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 06 10 10 - 12 X 2 | 0.375 | 0.625 | 0.625 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 06 10 12 - 12 X 2 | 0.375 | 0.625 | 0.75 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 07 09 08 - 12 X 1 | 0.4375 | 0.5625 | 0.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 07 09 12 - 12 X 1 | 0.4375 | 0.5625 | 0.75 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 07 09 16 - 12 X 1 | 0.4375 | 0.5625 | 1 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 08 10 08 - 12 X 2 | 0.5 | 0.625 | 0.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 08 10 10 - 12 X 2 | 0.5 | 0.625 | 0.625 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 08 10 16 - 12 X 2 | 0.5 | 0.625 | 1 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 08 12 08 - 16 X 2 | 0.5 | 0.75 | 0.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 08 12 16 - 16 X 2 | 0.5 | 0.75 | 1 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 08 12 18 - 16 X 2 | 0.5 | 0.75 | 1.125 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 10 12 08 | 0.625 | 0.75 | 0.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 10 12 16 - 18 X 1.5 | 0.625 | 0.75 | 1 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 10 12 18 - 18 X 2 | 0.625 | 0.75 | 1.125 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 10 14 08 - 20 X 2 | 0.625 | 0.875 | 0.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 10 14 12 - 20 X 2 | 0.625 | 0.875 | 0.75 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 10 14 16 - 20 X 2 | 0.625 | 0.875 | 1 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 10 14 18 - 20 X 2 | 0.625 | 0.875 | 1.125 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 10 14 20 - 20 X 2 | 0.625 | 0.875 | 1.25 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 12 16 12 - 22 X 2 | 0.75 | 1 | 0.75 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 12 16 16 - 22 X 2 | 0.75 | 1 | 1 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 12 16 20 - 22 X 2 | 0.75 | 1 | 1.25 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 12 16 24 - 22 X 2 | 0.75 | 1 | 1.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 14 16 16 - 20 X 2 | 0.875 | 1 | 1 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 14 18 12 - 26 X 2 | 0.875 | 1.125 | 0.75 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 14 18 16 - 26 X 2 | 0.875 | 1.125 | 1 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 14 18 20 - 26 X 2 | 0.875 | 1.125 | 1.25 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 14 18 24 - 26 X 2 | 0.875 | 1.125 | 1.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 16 20 16 - 28 X 2 | 1 | 1.25 | 1 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 16 20 20 - 28 X 2 | 1 | 1.25 | 1.25 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 16 20 24 - 28 X 2 | 1 | 1.25 | 1.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 16 20 28 - 28 X 2 | 1 | 1.25 | 1.75 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 16 20 32 - 28 X 2 | 1 | 1.25 | 2 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 18 22 16 - 30 X 2 | 1.125 | 1.375 | 1 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 18 22 20 - 30 X 2 | 1.125 | 1.375 | 1.25 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 18 22 24 - 30 X 2 | 1.125 | 1.375 | 1.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 18 22 28 - 30 X 2 | 1.125 | 1.375 | 1.75 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 20 24 12 | 1.25 | 1.5 | 0.75 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 20 24 20 - 30 X 2 | 1.25 | 1.5 | 1.25 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 20 24 24 - 30 X 2 | 1.25 | 1.5 | 1.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 20 26 16 - 32 X 2 | 1.25 | 1.625 | 1 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 20 26 20 - 32 X 2 | 1.25 | 1.625 | 1.25 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 20 26 24 - 32 X 2 | 1.25 | 1.625 | 1.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 20 26 28 - 32 X 2 | 1.25 | 1.625 | 1.75 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 22 26 12 - 30 X 2 | 1.375 | 1.625 | 0.75 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 22 26 20 - 30 X 2 | 1.375 | 1.625 | 1.25 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 22 26 32 - 30 X 2 | 1.375 | 1.625 | 2 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 24 28 24 | 1.5 | 1.75 | 1.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 24 28 30 - 30 X 2 | 1.5 | 1.75 | 1.875 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 24 30 16 - 40 X 3 | 1.5 | 1.875 | 1 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 24 30 20 - 40 X 3 | 1.5 | 1.875 | 1.25 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 24 30 24 - 40 X 3 | 1.5 | 1.875 | 1.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 24 30 32 - 40 X 3 | 1.5 | 1.875 | 2 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 08 12 12 - 16 X 2 T | 0.5 | 0.75 | 0.75 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 32 36 20 - 40 X 2 | 2 | 2.25 | 1.25 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 04 06 03 - 08 X 1 | 0.25 | 0.375 | 0.1875 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 48 56 38 - 64 X 6 | 3 | 3.5 | 2.375 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 06 08 04 - 10 x 1 | 0.375 | 0.5 | 0.25 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 06 08 12 - 10 X 01 | 0.375 | 0.5 | 0.75 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 06 08 08 - 10 X 1 | 0.375 | 0.5 | 0.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 06 08 05 - 10 X 1 T | 0.375 | 0.5 | 0.3125 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 04 06 04 - 08 X 1 T | 0.25 | 0.375 | 0.25 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 04 06 06 - 08 X 1 T | 0.25 | 0.375 | 0.375 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 04 06 08 - 08 X 1 T | 0.25 | 0.375 | 0.5 | ||
| Sintered Bronze & Iron Bearings | Imperial | AJ 04 06 12 - 08 X 1 T | 0.25 | 0.375 | 0.75 |
Frequently Asked Questions
If the answer to your question is not listed below, please feel free to give us a call directly on +1 (0) 419 830 2230 or email us on sales@bowmanbearingtech.com.
What is a sintered flanged bearing?
A sintered flanged bearing is a plain bearing manufactured from sintered bronze or iron with an integrated flange. The flanged design provides radial bearing support while also helping with axial positioning within an assembly. Sintered Bronze/Iron bearings are available for a range of industrial applications.
When should I use a flanged design?
A flanged bearing is useful when an application requires both radial support and axial positioning. The integrated flange can help locate the bearing within a housing and simplify assembly, making it suitable for applications where axial movement needs to be controlled.
What lubricant is impregnated in the bearing?
Oil-impregnated sintered bearings contain lubricant within the pores of the sintered material. During operation, the oil can migrate to the bearing surface to support lubrication and reduce friction and wear. The specific lubricant used depends on the bearing specification and application requirements.
What sizes are available for sintered flanged bearings?
Our Sintered Bronze/Iron bearings are available in a range of standard metric and imperial sizes and tolerances. Standard metric dimensions and tolerances conform to ISO 2795:1991. Non-standard sizes can also be produced through our in-house machining capabilities.
How do I request a quote for sintered bearings?
Provide your required bearing dimensions, quantity, material, tolerance, and application details when contacting our team. As an industrial sintered bronze/iron supplier in the US, we support customers looking to buy Sintered Bronze/Iron bearings in North America and can recommend a suitable Bowman sintered bronze/iron solution.
