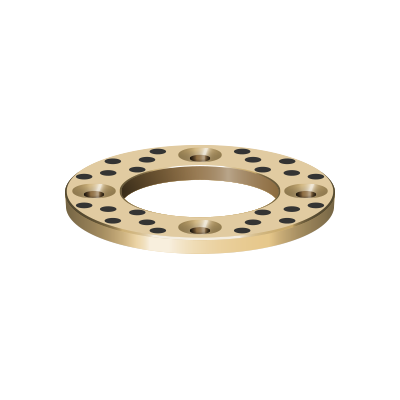

About Bowman Oilless Thrust Washers
Bowman Oilless® bearings are developed for high-load, low-speed applications and are made from rotational cast high-strength bronze using specially formed graphite plugs as the lubricant.
Our WMO Oilless washers are available in metric and imperial sizes. This WMOW graphite washer solutions are designed for demanding bearing applications, with graphite providing lubrication.
Our in-house machining service can produce non-standard sizes to suit specific customer requirements. Bowman supports customers looking for Bowman Oilless thrust washers USA solutions, including customers looking to buy Bowman Oilless Thrust bearings North America.
For more information about Bowman Oilless Bearings USA or to discuss your requirements with an industrial Bowman Oilless Thrust Supplier US, contact Bowman.
Matching Bearings
| Material | Unit Measurement | Part Number | Inner Diameter | Outer Diameter | Thickness | Tolerance Range | Action Button |
|---|---|---|---|---|---|---|---|
| Bowman Oilless® Bearings | Metric | WMOW 10 30 03 | 10 | 30 | 3 | ||
| Bowman Oilless® Bearings | Metric | WMOW 12 40 03 | 12 | 40 | 3 | ||
| Bowman Oilless® Bearings | Metric | WMOW 13 40 03 | 13 | 40 | 3 | ||
| Bowman Oilless® Bearings | Metric | WMOW 14 40 03 | 14 | 40 | 3 | ||
| Bowman Oilless® Bearings | Metric | WMOW 15 50 03 | 15 | 50 | 3 | ||
| Bowman Oilless® Bearings | Metric | WMOW 16 50 03 | 16 | 50 | 3 | ||
| Bowman Oilless® Bearings | Metric | WMOW 18 50 03 | 18 | 50 | 3 | ||
| Bowman Oilless® Bearings | Metric | WMOW 20 50 05 | 20 | 50 | 5 | ||
| Bowman Oilless® Bearings | Metric | WMOW 25 55 05 | 25 | 55 | 5 | ||
| Bowman Oilless® Bearings | Metric | WMOW 30 60 05 | 30 | 60 | 5 | ||
| Bowman Oilless® Bearings | Metric | WMOW 35.2 7 05 | 35 | 70 | 5 | ||
| Bowman Oilless® Bearings | Metric | WMOW 40 80 07 | 40 | 80 | 7 | ||
| Bowman Oilless® Bearings | Metric | WMOW 45.3 90 07 | 45 | 90 | 7 | ||
| Bowman Oilless® Bearings | Metric | WMOW 50 100 08 | 50 | 100 | 8 | ||
| Bowman Oilless® Bearings | Metric | WMOW 55 110 08 | 55 | 110 | 8 | ||
| Bowman Oilless® Bearings | Metric | WMOW 60 120 08 | 60 | 120 | 8 | ||
| Bowman Oilless® Bearings | Metric | WMOW 65 125 08 | 65 | 125 | 8 | ||
| Bowman Oilless® Bearings | Metric | WMOW 70 130 10 | 70 | 130 | 10 | ||
| Bowman Oilless® Bearings | Metric | WMOW 75 130 10 | 75 | 130 | 10 | ||
| Bowman Oilless® Bearings | Metric | WMOW 80.3 150 10 | 80 | 150 | 10 | ||
| Bowman Oilless® Bearings | Metric | WMOW 90 170 10 | 90 | 170 | 10 | ||
| Bowman Oilless® Bearings | Metric | WMOW 100 190 10 | 100 | 190 | 10 | ||
| Bowman Oilless® Bearings | Metric | WMOW 120 200 10 | 120 | 200 | 10 |
Frequently Asked Questions
What are Bowman Oilless Washers?
Bowman Oilless washers are made from rotational cast high-strength bronze and use specially formed graphite plugs as the lubricant. They are designed for high-load, low-speed applications.
How do graphite lubricated washers work?
The specially formed graphite plugs provide lubrication within the washer, making Bowman Oilless washers suitable for high-load, low-speed applications.
What axial loads do these handles?
The axial load capacity depends on the washer size, operating conditions, and application. Contact Bowman to discuss your requirements and determine a suitable solution.
What sizes are available?
WMO Oilless washers are available in both metric and imperial sizes. Our in-house machining service can also produce non-standard sizes to suit specific customer requirements.
How do I request a quote?
Provide the required dimensions, quantity, and application details when requesting a quote. Bowman can support customers looking for Bowman Oilless thrust washers USA and those looking to buy Bowman Oilless Thrust bearings North America. As an industrial Bowman Oilless thrust supplier in US, Bowman can also advise on suitable options.
